High-CRI LED products.

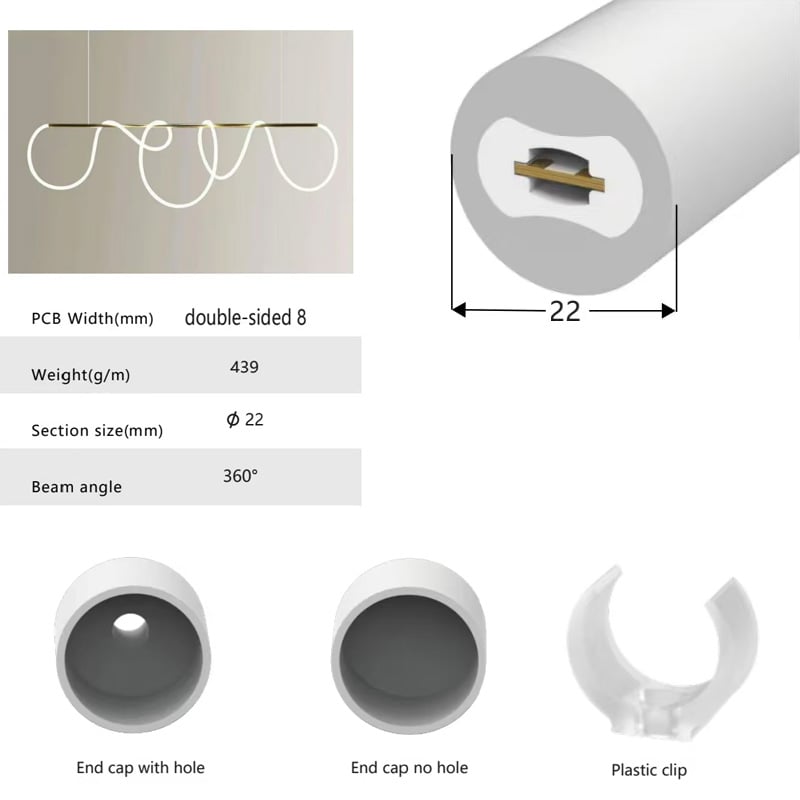

Outside diameter

22 mm

Inside width

9 mm

Material

Flexible silicone

Profile rating

IP67, supplier stated

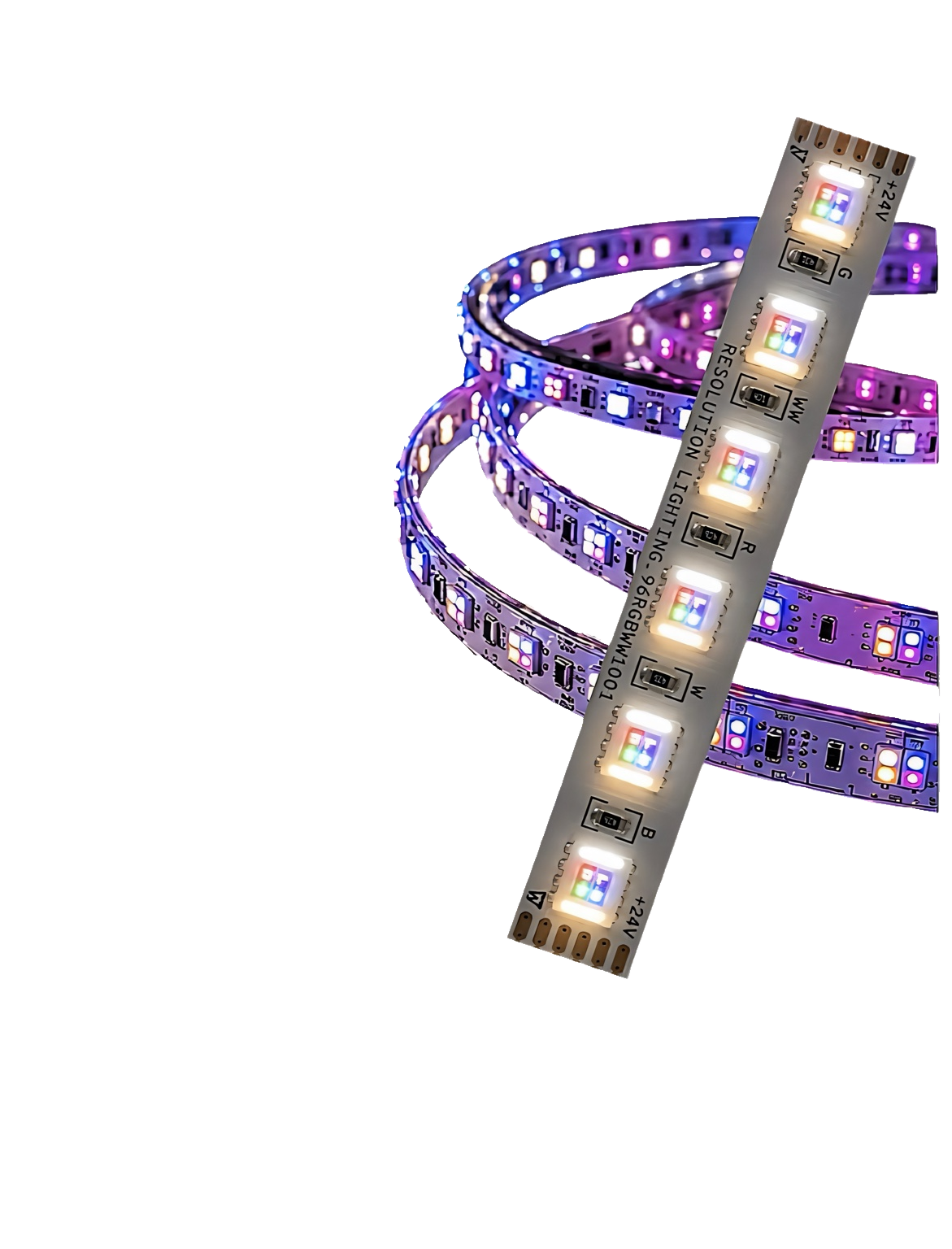

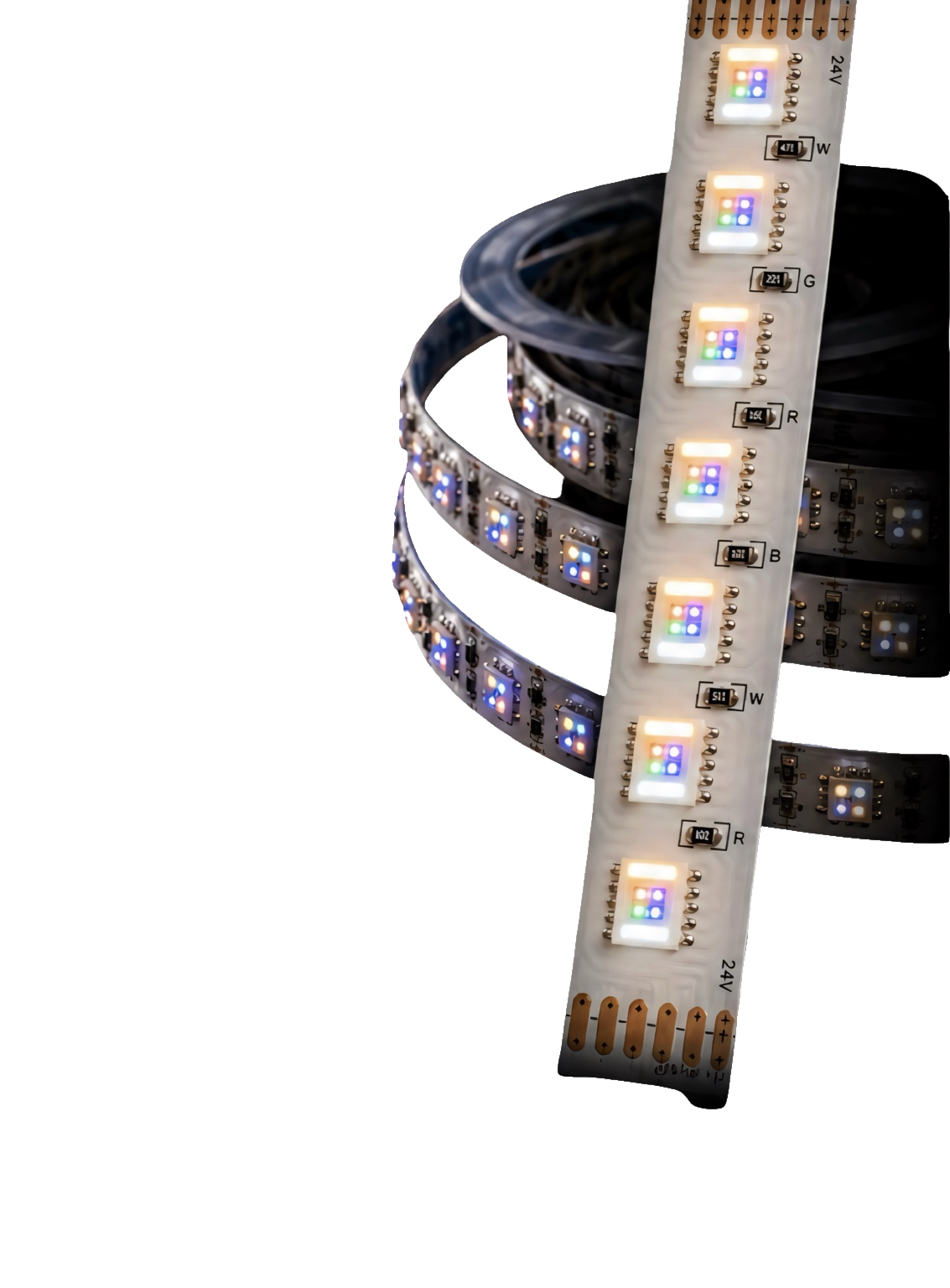

For compatible ribbon up to 8 mm wide. LED ribbon, power supply and controller are sold separately. RL96 (10 mm) and RL112 (12 mm) do not fit this profile.

Two end caps per selected length, with three cap configurations. Mounting clip kits are optional. For the full 360° effect, use a suitable double-sided LED configuration. Seal end caps and cable entries correctly; the installed rating depends on all components.

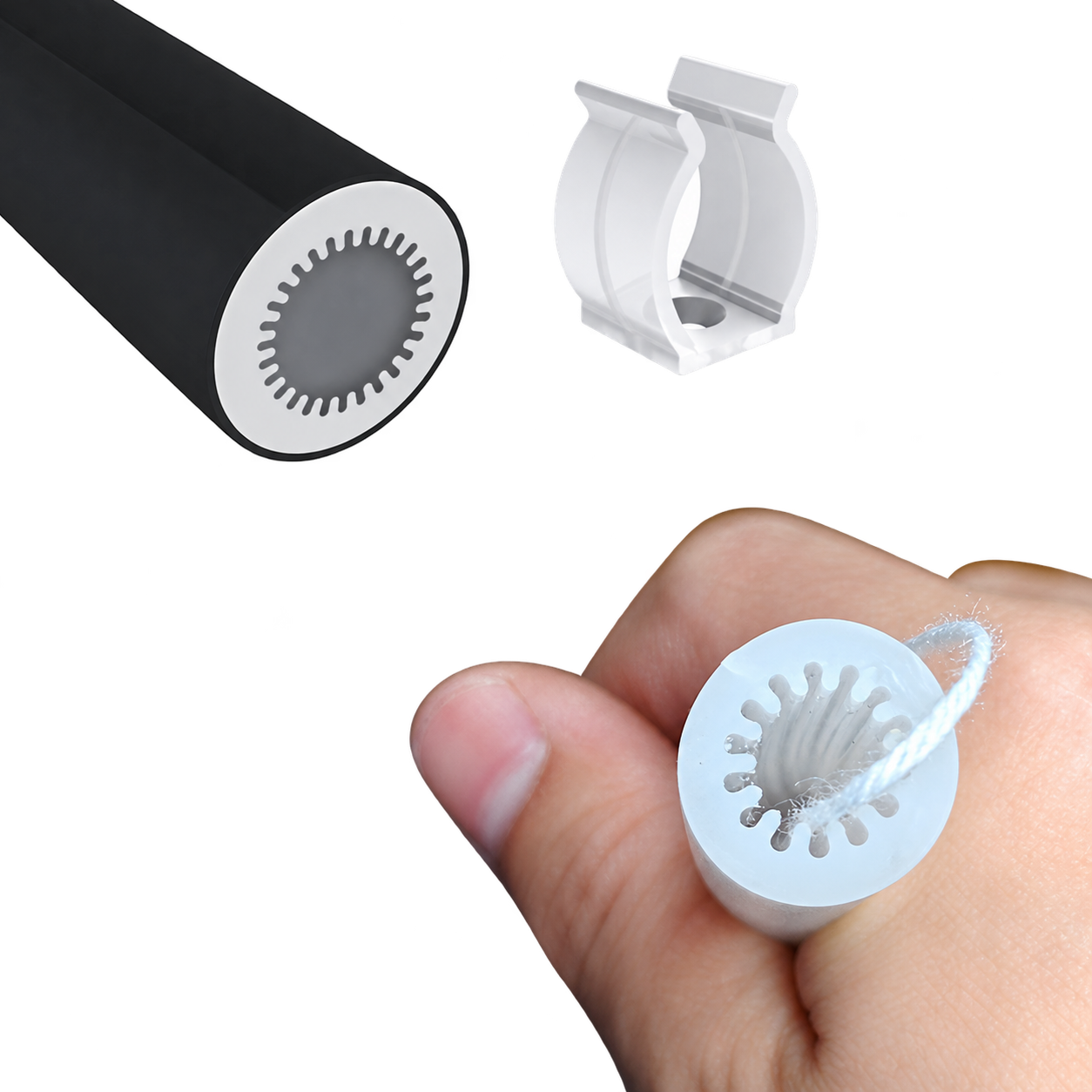

Outside diameter

13 mm

Ribbon width

5 mm or narrower

Material

Flexible silicone

Profile rating

IP67, supplier stated

Colours

Full Black / Full White

Supplier model

BNEON-360-C13

For the full 360° effect, two suitable LED strips are typically installed back-to-back. Check their combined height before installation. LED ribbon, power supply and controller are sold separately. RL96 (10 mm) and RL112 (12 mm) do not fit this profile.

Choose end caps with holes, without holes, or half of each, plus one continuous length or separate rolls. Optional mounting clip kits add CA$10.00 per selected length. Maximum supplier roll length is 100 m; available shop lengths are 1 m, 2 m and 5 m.

Seal end caps and cable entries correctly; the installed rating depends on all components. Light output and uniformity depend on the LED ribbon and installation.

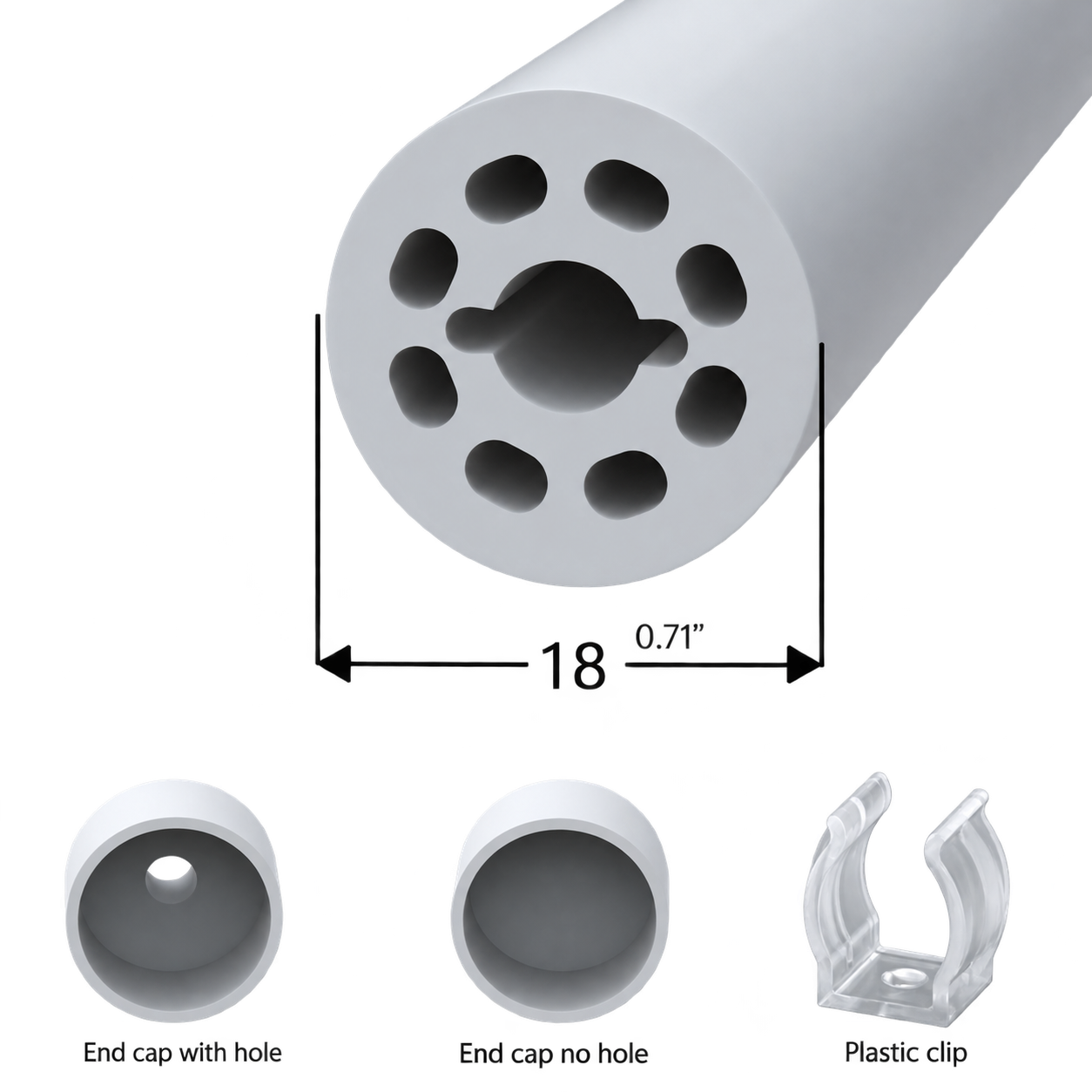

Outside diameter

18 mm / 0.71 in

Inside width

8.6 mm / 0.34 in

Material

Flexible silicone

Profile rating

IP67, supplier stated

UV resistant

Yes, supplier stated

Supplier model

FLNLT-D18-360

For compatible LED ribbon up to 8 mm wide. Install two suitable strips back-to-back for 360° light coverage and check their combined height before installation. The supplier specifies that two 5050 LED strips will not fit. RL96 (10 mm) and RL112 (12 mm) do not fit this profile.

End caps are included in your selected configuration: with holes, without holes, or half of each. Choose one continuous length or separate rolls. Optional mounting clip kits add CA$15.00 per selected length.

The supplier lists a silicone profile temperature range of −50°C to 200°C; the completed lighting system must stay within the ratings of its LED ribbon and other components. Seal end caps and cable entries correctly; the installed water resistance depends on all components and workmanship. LED ribbon, power supply and controller are sold separately.

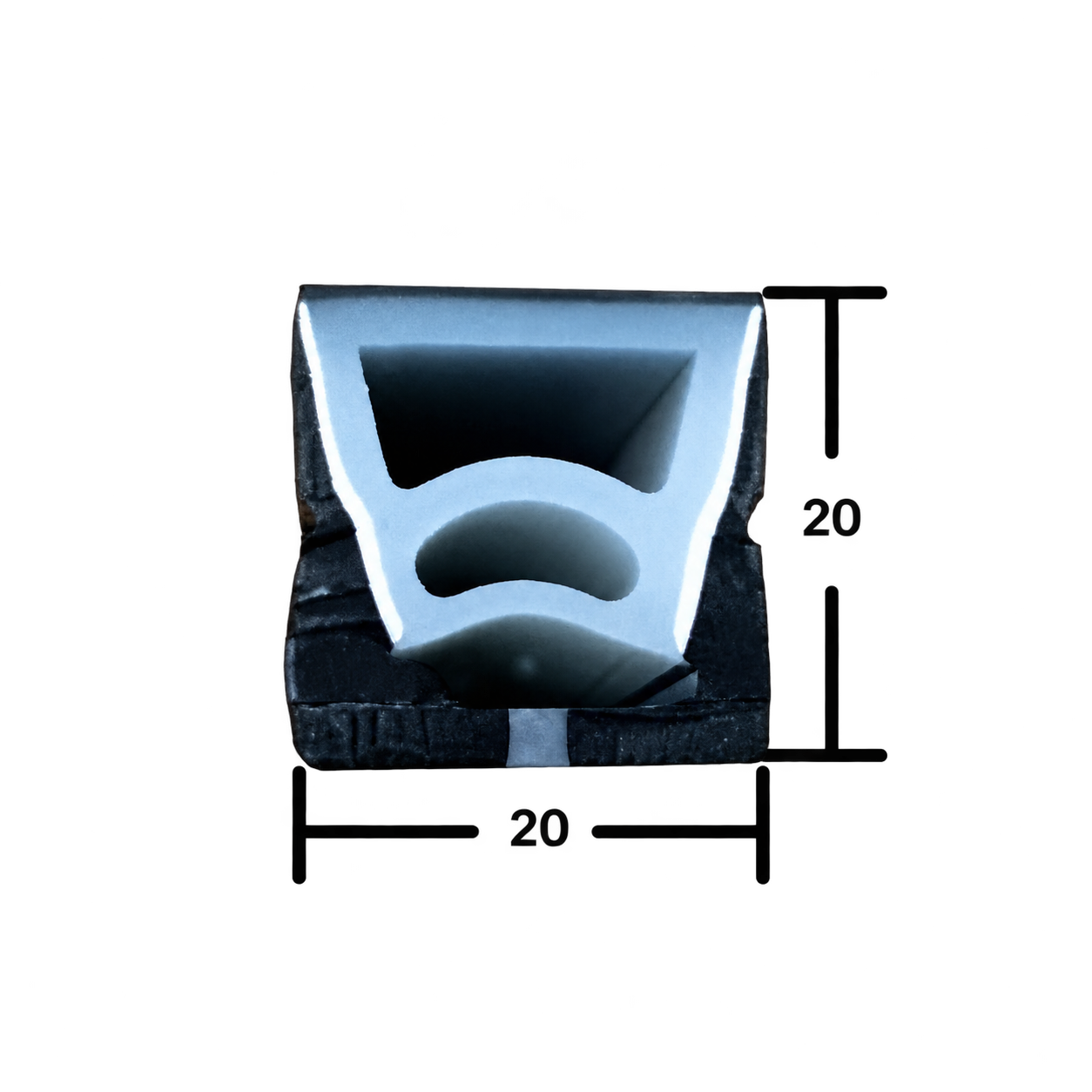

Outside dimensions

20 mm wide × 20 mm high

Inside channel width

13.5 mm

Maximum ribbon width

12 mm

Light distribution

120°, top emitting

Profile rating

IP67, supplier stated

UV resistant

Yes, supplier stated

Supplier model

FLNLT-CT2020

For compatible single-colour, COB, CCT, RGB, RGBW, RGBCCT or addressable ribbon up to 12 mm wide. Check component height and thermal requirements before assembly. The profile bends along the back of the LED strip and can be cut to length.

End caps are included in your selected configuration: with holes, without holes, or half of each. Choose one continuous length or separate rolls. Mounting clip kits add CA$10.00 per selected length; the supplier specifies 2 clips for 1 m, 4 for 2 m and 10 for 5 m.

The supplier lists a silicone profile temperature range of −50°C to 200°C; the completed system must stay within the ratings of its LEDs and other components. Seal end caps and cable entries correctly; installed water resistance depends on all components and workmanship. LED ribbon, power supply, controller and mounting channels are sold separately.

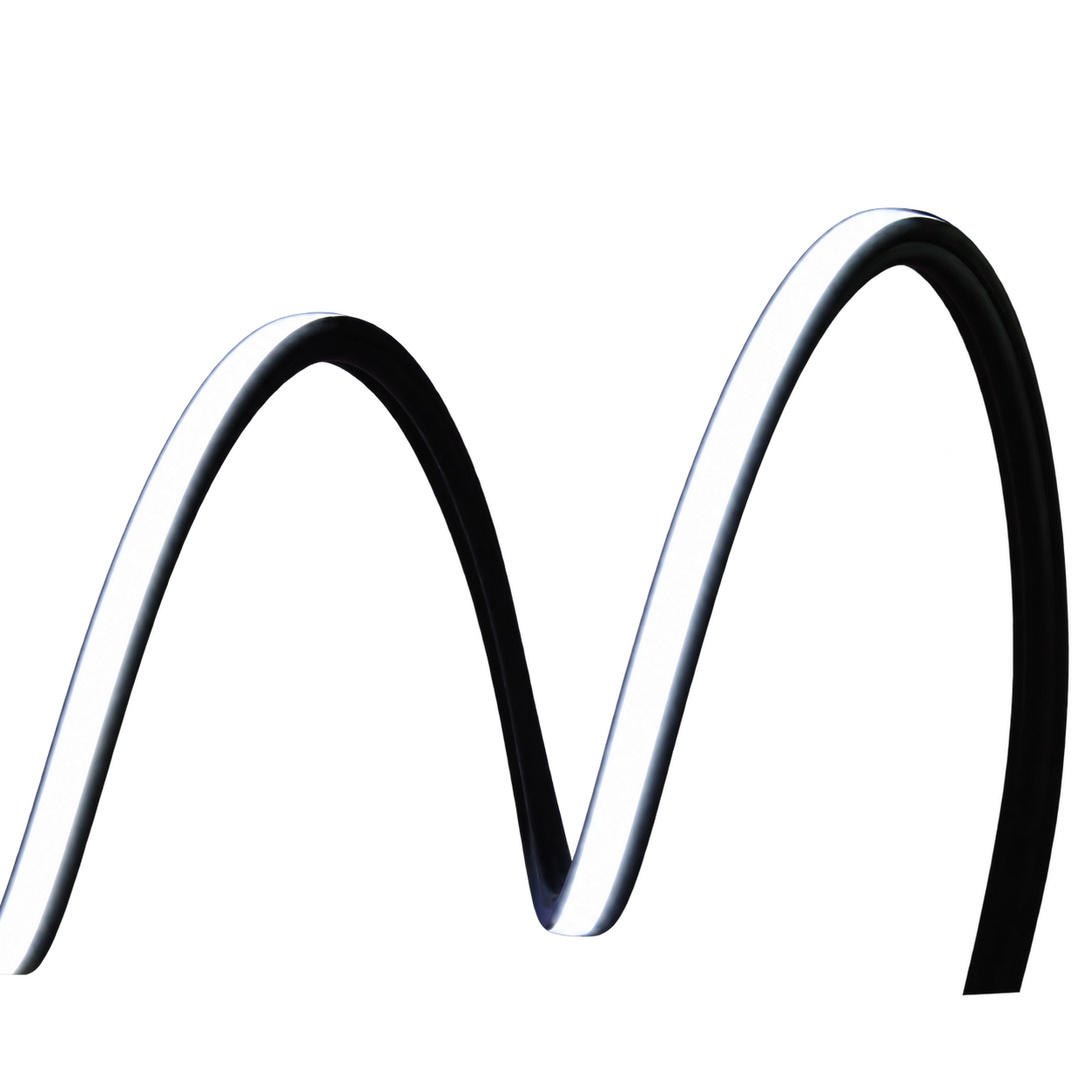

View illuminated example ↗ — shown with separately installed LED ribbon.
